Alfa Laval Industrial line is a wide product range that is used in virtually all types of industry. Suitable for a wide range of applications, this is the smallest model in the industrial range of gasketed plate-and-frame heat exchangers.ALFA LAVAL, IndustrialLine HEAT EXCHANGER, T20
Applications

  • Biotech and Pharmaceutical
  • Chemicals
  • Energy and Utilities
  • Food and Beverages
  • Home and Personal care
  • HVAC and Refrigeration
  • Machinery and Manufacturing
  • Marine and Transportation
  • Mining, Minerals and Pigments
  • Pulp and Paper
  • Semiconductor and Electronics
  • Steel
  • Water and Waste treatment

Benefits

  • High energy efficiency – low operating cost
  • Flexible configuration – heat transfer area can be modified
  • Easy to install – compact design
  • High serviceability – easy to open for inspection and cleaning and easy to clean by CIP
  • Access to Alfa Laval’s global service network

Features

Every detail is carefully designed to ensure optimal performance, maximum uptime and easy maintenance. Selection of available features:

  • 5-point alignment system
  • Reinforced hanger
  • Chocolate pattern distribution area
  • Glued gasket
  • Clip-on gasket
  • Leak chamber
  • Bearing box
  • Fixed bolt head
  • Key hole bolt opening
  • Lifting lug
  • Lining
  • Lock washer
  • Pressure plate roller
  • Tightening bolt cover

Technical data

Plates
Name: T20-B
Type: Single plate
Free channel, mm (inches): 1.9 (0.075)

Name: T20-M
Type: Single plate
Free channel, mm (inches): 4.0 (0.16)

Name: T20-P
Type: Single plate
Free channel, mm (inches): 2.9 (0.11)

Materials
Heat transfer plates: 304/304L, 316/316L, 254
C-276, C-2000
Ni, Ti

Field gaskets: NBR, EPDM, FKM
Flange connections:  Carbon steel, Metal lined: stainless steel, Alloy C-276, titanium, Rubber lined

Frame and pressure plate: Carbon steel, epoxy painted

Other materials may be available on request. All option combinations may not be configurable.

Operational data

Frame, PV-code: FM, pvcALS
Max. design pressure (barg/psig): 10.0/145
Max. design temperature (°C/°F): 180/356

Frame, PV-code: FG, pvcALS
Max. design pressure (barg/psig): 16.0/232
Max. design temperature (°C/°F): 180/356

Frame, PV-code: FG, ASME
Max. design pressure (barg/psig): 10.3/150
Max. design temperature (°C/°F): 249/480

Frame, PV-code: FG, PED
Max. design pressure (barg/psig): 16.0/232
Max. design temperature (°C/°F): 180/356

Frame, PV-code: FD, ASME
Max. design pressure (barg/psig): 20.7/300
Max. design temperature (°C/°F): 249/480

Frame, PV-code: FS, ASME
Max. design pressure (barg/psig): 27.6/400
Max. design temperature (°C/°F): 249/480

Frame, PV-code: FS, PED
Max. design pressure (barg/psig):  30.0/435
Max. design temperature (°C/°F): 160/320

Extended pressure and temperature rating may be available on request.

Flange connections
FM, pvcALS: EN 1092-1 DN200 PN10
ASME B16.5 Class 150 NPS 8
JIS B2220 10K 200A
FG, pvcALS: ASME B16.5 Class 150 NPS 8
JIS B2220 10K 200A
JIS B2220 16K 200A
FG, ASME: ASME B16.5 Class150 NPS 8
FG, PED: EN 1092-1 DN200 PN10
EN 1092-1 DN200 PN16
EN 1092-1 DN200 PN25
ASME B16.5 Class 150 NPS 8
FD, ASME: ASME B16.5 Class 150 NPS 8
ASME B16.5 Class 300 NPS 8
FS, pvcALS: EN 1092-1 DN200 PN25
EN 1092-1 DN200 PN40
ASME B16.5 Class 300 NPS 8
ASME B16.5 Class 400 NPS 8
JIS B2220 20K 200A
FS, ASME: ASME B16.5 Class 300 NPS 8
ASME B16.5 Class 400 NPS 8
FS, PED: EN 1092-1 DN200 PN25
EN 1092-1 DN200 PN40
ASME B16.5 Class 400 NPS 8

Standard EN1092-1 corresponds to GOST 12815-80 and GB/T 9115.

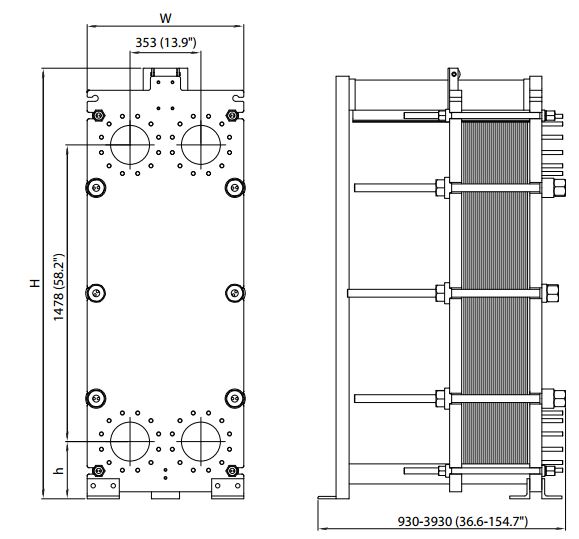

Dimensional drawing
Measurements mm (inches)

ALFA LAVAL, IndustrialLine HEAT EXCHANGER, T20 drawing

Type: T20-FM
H: 2145 (84.4”)
W: 780 (30.7”)
h: 285 (11.2”)

Type: T20-FG
H: 2145 (84.4”)
W: 780 (30.7”)
h:  285 (11.2”)

Type: T20-FS
H: 2183 (85.9”)
W: 780 (30.7”)
h: 323 (12.7”)
