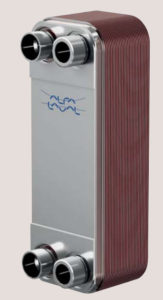

The Alfa Laval CB range of brazed plate heat exchangers feature efficient heat transfer with an extremely small footprint, making them ideal for demanding installations where space is at a premium. The CB range is used in HVAC heating/cooling, refrigeration, process heating/cooling, oil cooling, solar heating and many other applications.
- Industrial heating and cooling
- Easy to install
- Low level of service and maintenance is required
- All units are pressure and leak tested
- Gasket free
The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. The XP design is particularly suited for CO2 applications. The unit can be supplied with a refrigerant distribution system for optimal evaporator performance. Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.

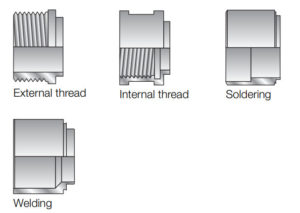

Examples of connections
Cover plates: Stainless steel
Connections: Stainless steel
Plates: Stainless steel
Brazing filler: Copper

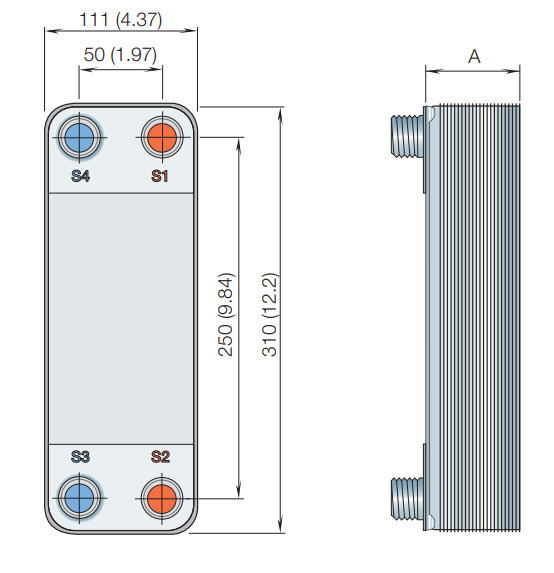

Measurements in mm (inches)
