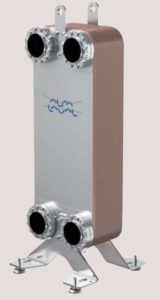

The Alfa Laval CB range of brazed plate heat exchangers feature efficient heat transfer with an extremely small footprint, making them ideal for demanding installations where space is at a premium. The CB range is used in HVAC heating/cooling, refrigeration, process heating/cooling, oil cooling, solar heating and many other applications.

Applications

  • HVAC heating and cooling
  • Refrigeration
  • Industrial heating and cooling



Benefits

  • Compact
  • Easy to install
  • Self-cleaning
  • Low level of service and maintenance is required
  • All units are pressure and leak tested
  • Gasket free



Design

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life.

Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.

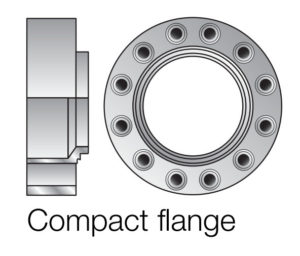

Examples of connections

Technical Data

Standard materials
Cover plates: Stainless steel
Connections: Stainless steel
Plates: Stainless steel
Brazing filler: Copper

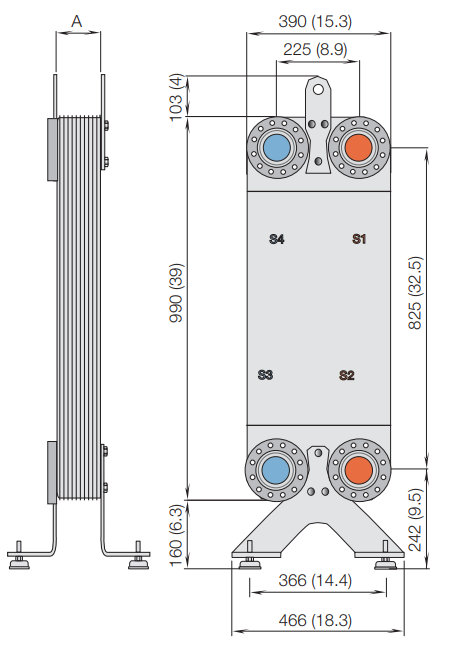

Dimensional drawing
Measurements in mm (inches)
