Alfa Laval AXP X-treme pressure line is specifically developed to work in air conditioning, CO₂ and other refrigerant applications, where the pressure requirements are extremely high.

Applications

Because of their high-pressure performance, they are particularly well-suited to CO2 applications, such as
transcritical gas cooling.

Benefits

  • Tolerates extremely high operating pressures
  • Compact
  • Easy to install
  • Self-cleaning
  • Low level of service and maintenance is required
  • All units are pressure and leak tested
  • Gasket free



Design

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life.

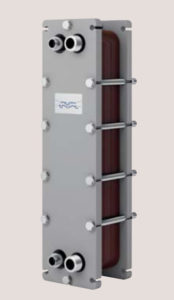

AXP are brazed plate heat exchangers with thin external frames in carbon steel that are able to withstand extremely high operating pressures. The unit can be supplied with a refrigerant distribution system for optimal evaporator performance. Always delivered with lifting lugs for easy handling.

Examples of connections

Technical Data

Standard materials

Cover plates: Stainless steel
Connections: Stainless steel
Plates: Stainless steel
Brazing filler: Copper
External frame: Carbon steel, Zinc electroplated

Dimensional drawing
Measurements in mm (inches)
